HMI behavior

The individual components and their behavior in certain situations are shown below.

Hint

If the diagrams are not shown big enough to read, please click on them.

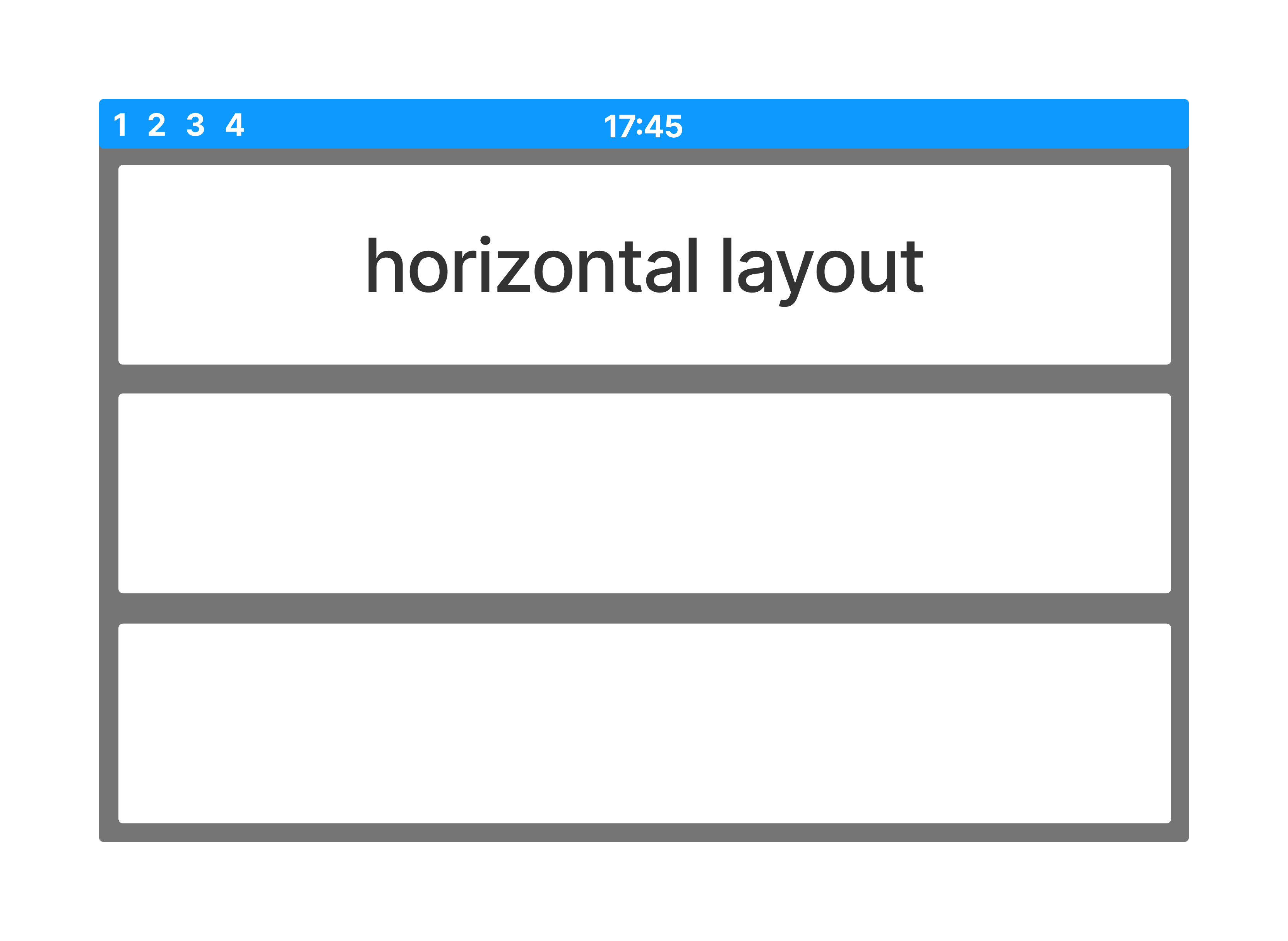

Horizontal layout

../../_images/layout_horizontal.png

horizontal layout

Vertical layout

../../_images/layout_vertical.png

vertical layout

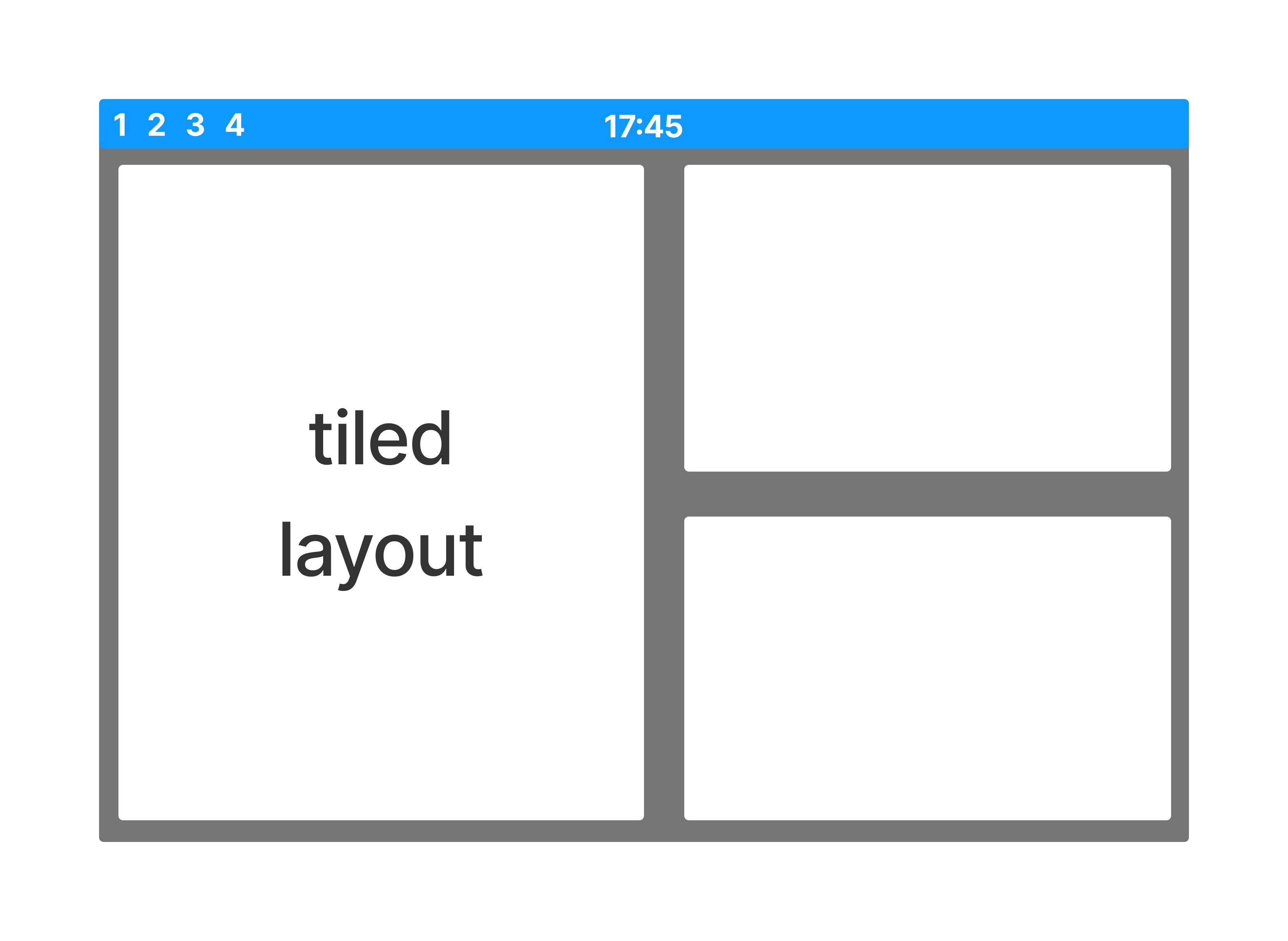

Tiled layout

../../_images/layout_tiled.png

tiled layout

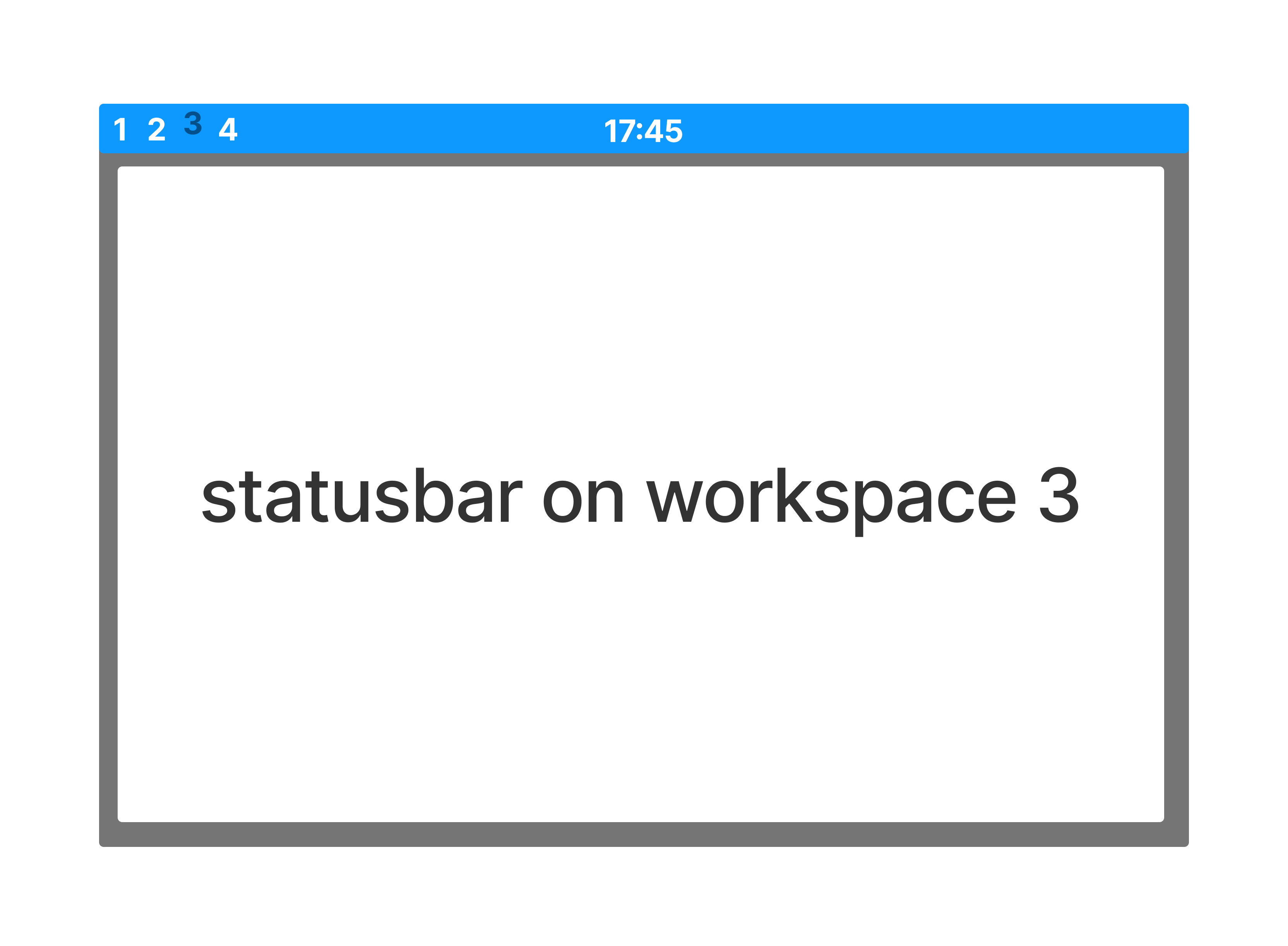

Workspaces in statusbar

../../_images/mock_statusbar.png

workspace 3 is active
