Flowcharts

The following flowcharts show the technical structure and sequence of the product.

Hint

If the diagrams are not shown big enough to read, please click on them.

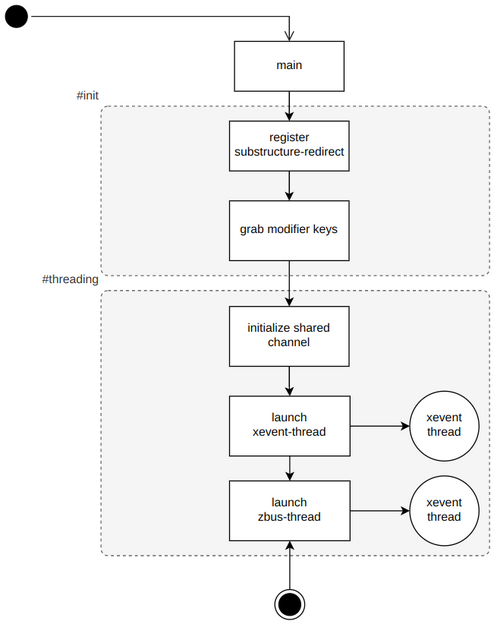

Main event loop

../_images/maineventloop.png — main event loop

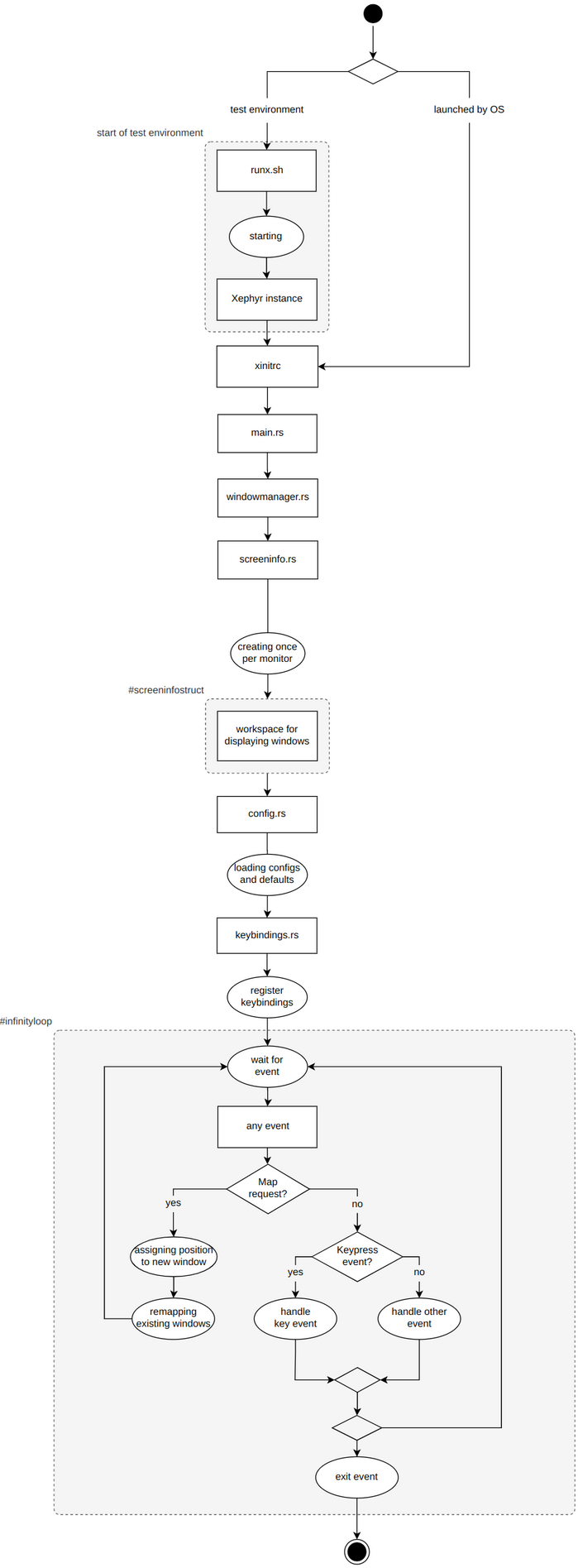

Instantiation

../_images/flowchart_instantiation.png — instantiation

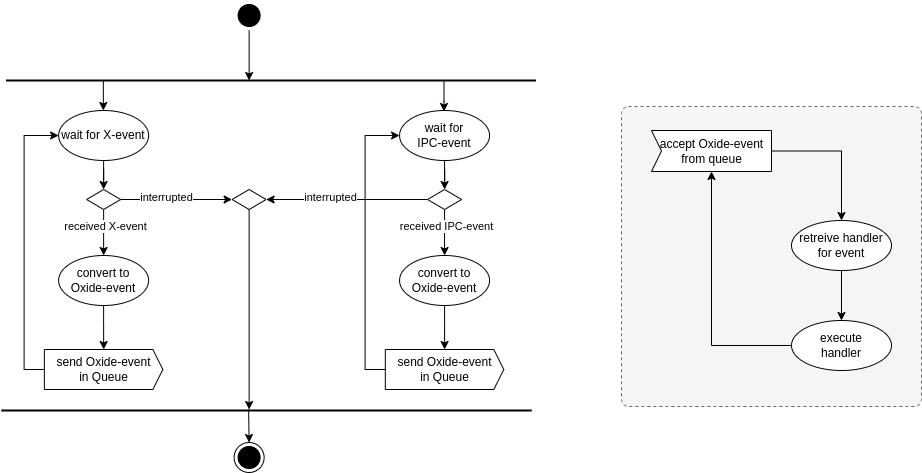

Eventhandling

../_images/flowchart_eventhandling.png — eventhandling

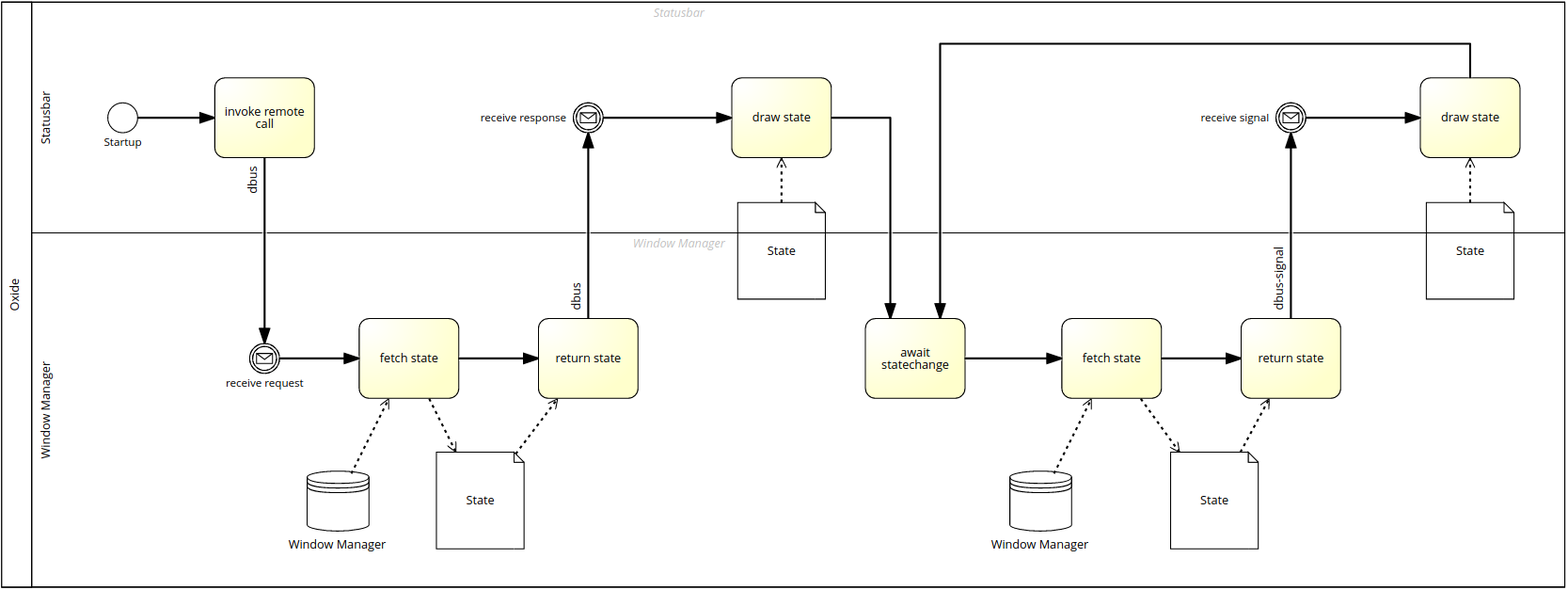

Communication window manager and statusbar

../_images/flowchart_ipc_com_statusbar.png — window manager and statusbar communicating

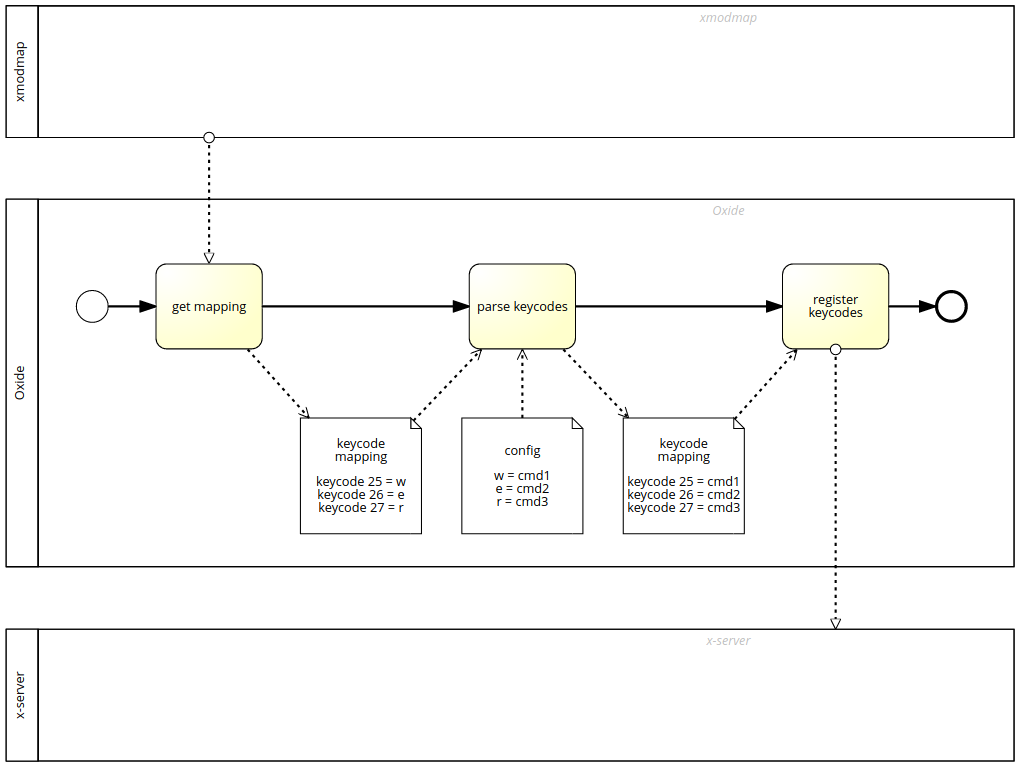

Register keybinds

../_images/flowchart_register_keybinds.png — register keybinds

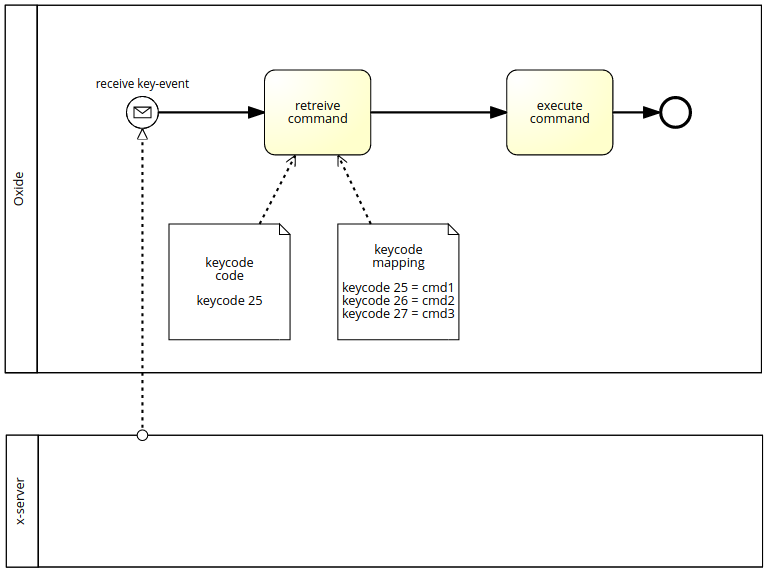

Getting associated keybind when key pressed

../_images/flowchart_keybinding_pressed.png — associated keybind for pressed key
